Trafalgar Traditional Shower Package With Fixed Head, Slide Rail Kit + Bath Spout

Trafalgar Traditional Shower Package with 8″ Fixed Head, Slide Rail Kit + Bath Spout

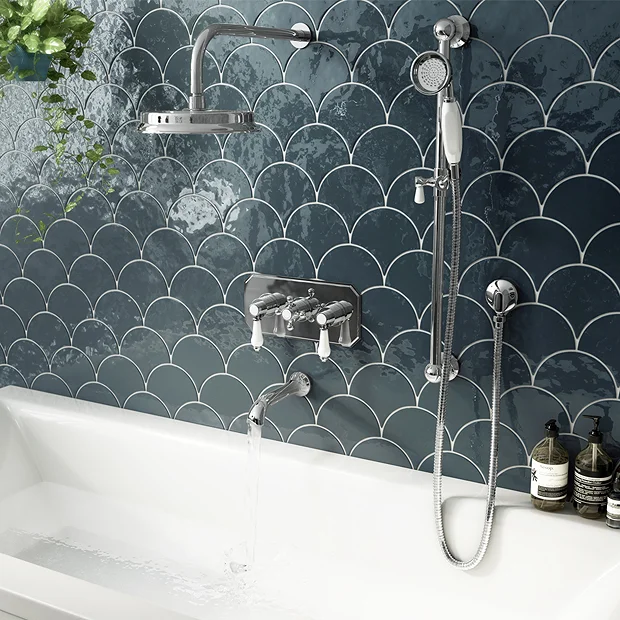

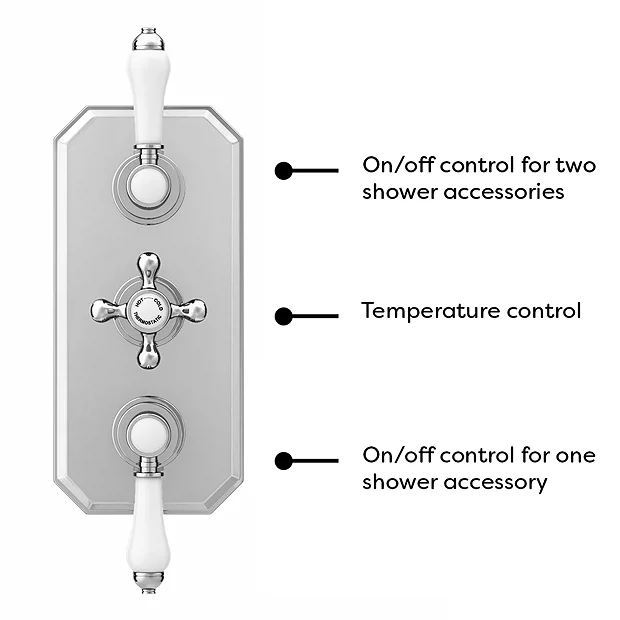

The Trafalgar traditional 3 outlet shower package features a stylish triple concealed thermostatic shower valve with built-in diverter which offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & handset with option to divert to bath filler.

Package comes with a wall mounted bath spout, a 8″ AirTec fixed shower head with swivel joint, a traditional style slide rail, flex and handset.

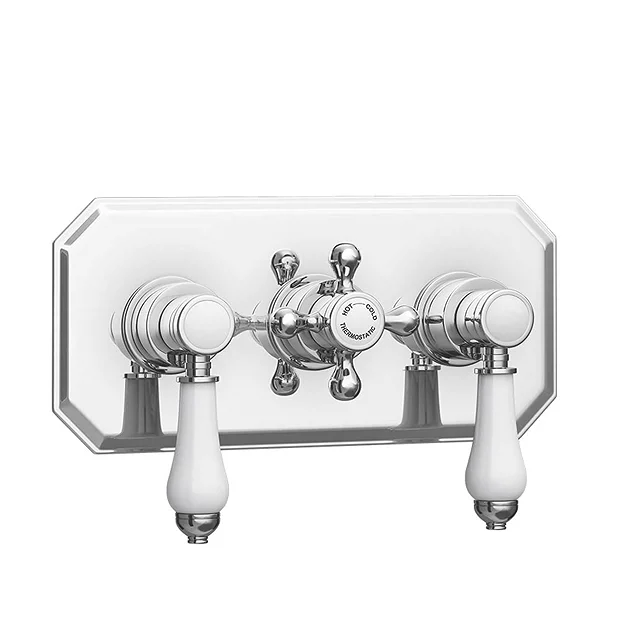

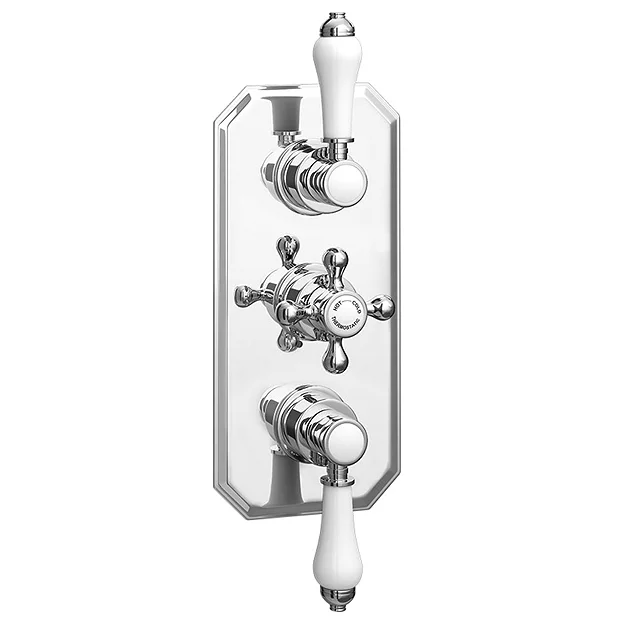

Triple Concealed Thermostatic Shower Valve with Diverter Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Built-in Diverter
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

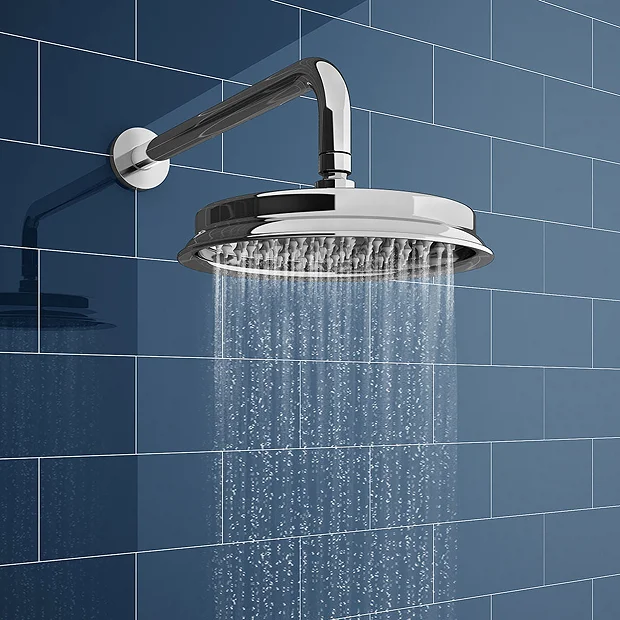

Shower Head with Arm Details

• Head Diameter: 225mm
• Arm length: 345mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Shape: Round
• Style: Contemporary
• Wall Mounted
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• AirTec Technology:
• Air suction spray boost
• Reduces water use
• Creates air bubbles in water for a luxury shower

Slide Rail Kit Details

• Height: 690mm
• Traditional Design
• Colour/Finish: Polished Chrome with White ceramic detailing
• Material: Brass Internals
• Slide Rail Kit & Shower
• Low pressure
• Adjustable Handset Position
• 1.5m hose
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards
• Includes outlet elbow

Bath Spout Details

• Diameter: 28mm
• Width: 60mm
• Projection: 222mm
• Style: Traditional
• Wall Mounted
• Product Type: Built-in Spout
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Minimum Pressure Required: 0.5 bar
• Pipe Size: (1/2″ BSP)

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images for illustrative purposes only

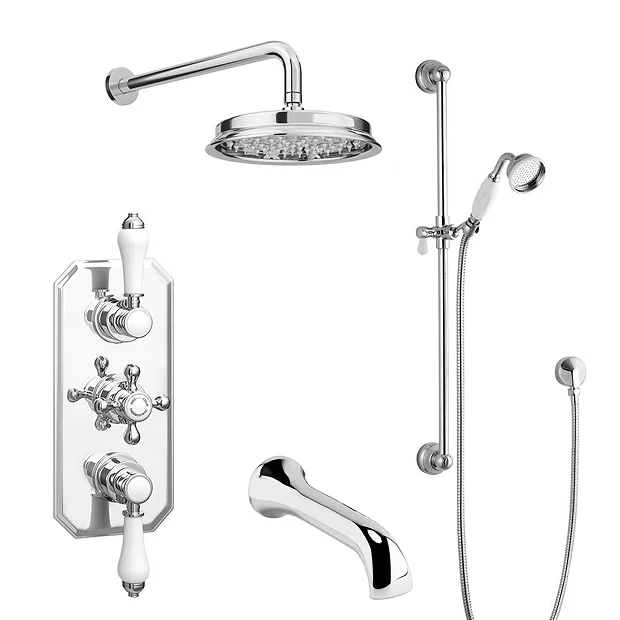

Comprises

(1) Traditional Triple Concealed Thermostatic Shower Valve with Diverter
(1) Traditional 8″ AirTec Shower Head & Wall Mounted Arm
(1) Traditional Shower Slide Rail Kit
(1) Wall Mounted Bath Spout

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
