Cruze Bar Shower Package With Valve + Slider Rail Kit

Cruze Bar Shower Package with Valve + Slider Rail Kit

If you love an invigorating power shower but want an option that also offers less pressure, consider the Cruze Bar Shower with Valve. This elegant chrome package includes a thermostatic exposed shower valve that offers constant water temperature even if other taps are running. There’s also a dual function shower head that you swivel to adjust the water flow to your liking, and a slider rail kit to position the spray exactly where you’d like it. This shower is safe to use for all the family as it incorporates anti scald functionality, keeping the water safely below 38°C.

Shower Valve Details

• Width: 270mm
• Depth: 79mm
• Height: 40mm
• Style: Modern
• Range: Bar Showers
• Handles: Round
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Bottom Outlet
• Thermostatically controlled
• Built-in anti-scald device

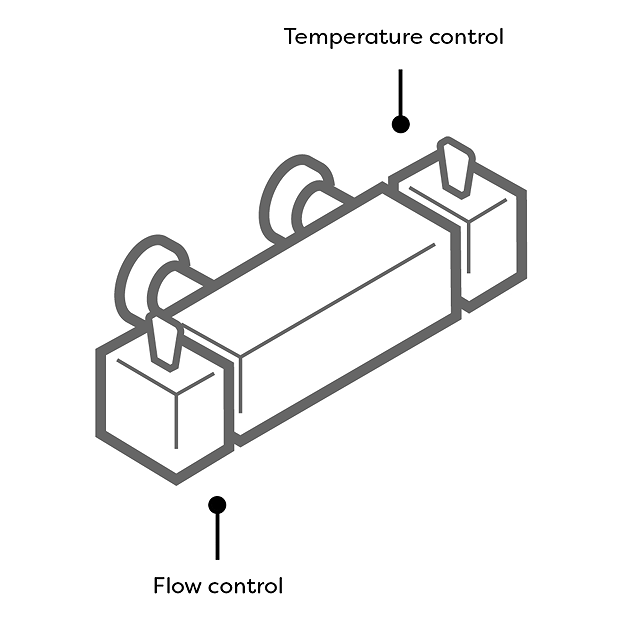

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 8.2 L/M
• 1 bar – 12.3 L/M
• 2 bar – 17.9 L/M
• 3 bar – 22.1 L/M
• 4 bar – 25.6 L/M
• 5 bar – 28.6 L/M

Slider Rail Kit Details

• Slide rail Dimensions – height 70cm, projection 8.5cm, width 3.5cm
• Shower handset – height 22cm
• Shower flex – 140cm
• Highly polished finish
• Chrome plated solid brass
• Contemporary style
• LP1 – 0.5 bar pressure minimum
• Rust resistant hose
• Easy Clean Multi-Function Handset

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

Please note: Certain parts are chrome plated plastic, not metal. The only parts that are not plastic are the rail and the hose.

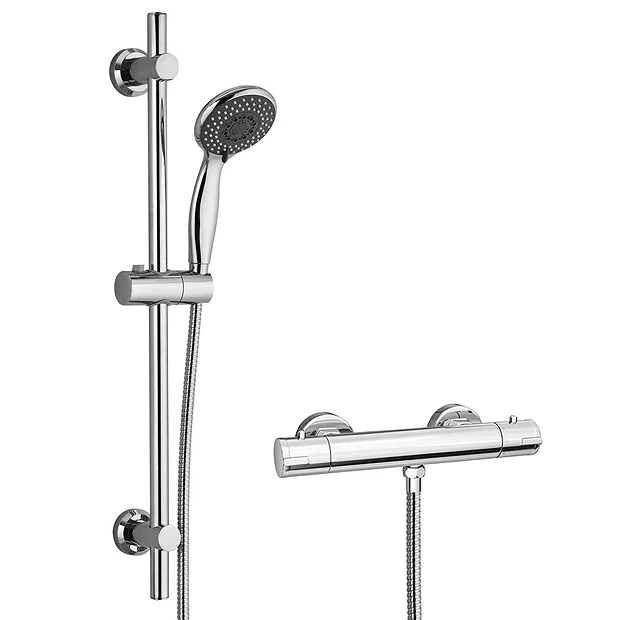

Comprises

(1) Round Slide Rail Kit – Chrome

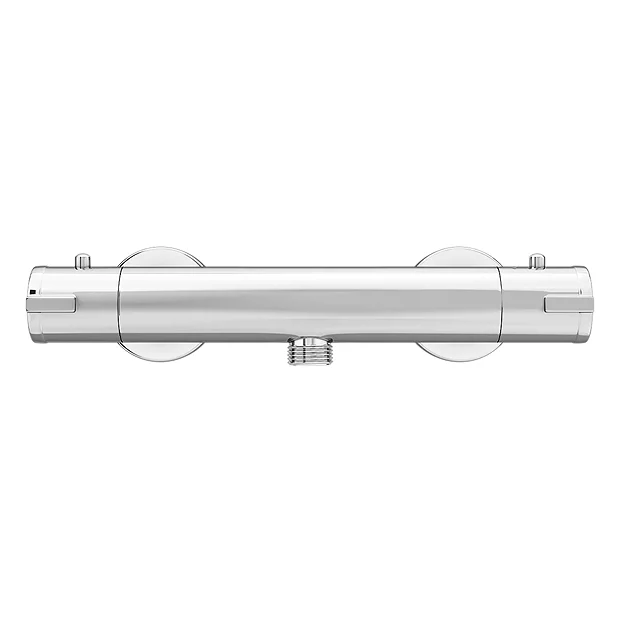

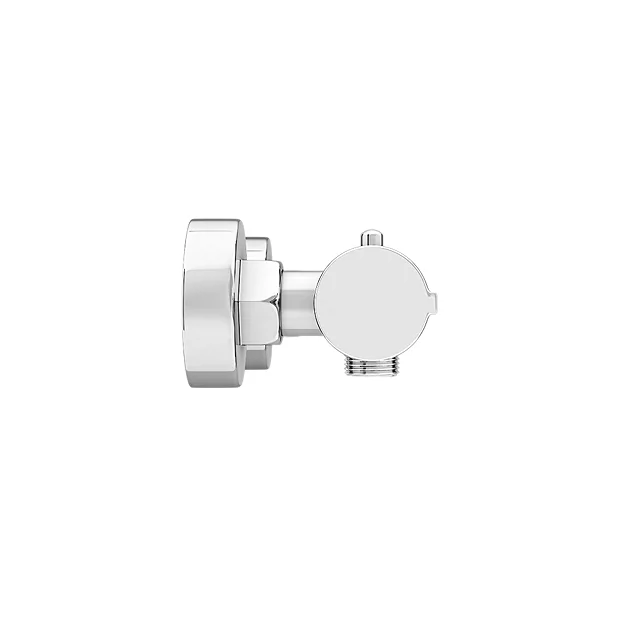

(1) Cruze Round Bottom Outlet Thermostatic Bar Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
