Bosa Modern Shower Package With Concealed Valve + Round Rainfall Head

Bosa Modern Shower Package with Concealed Valve + Round Rainfall Head

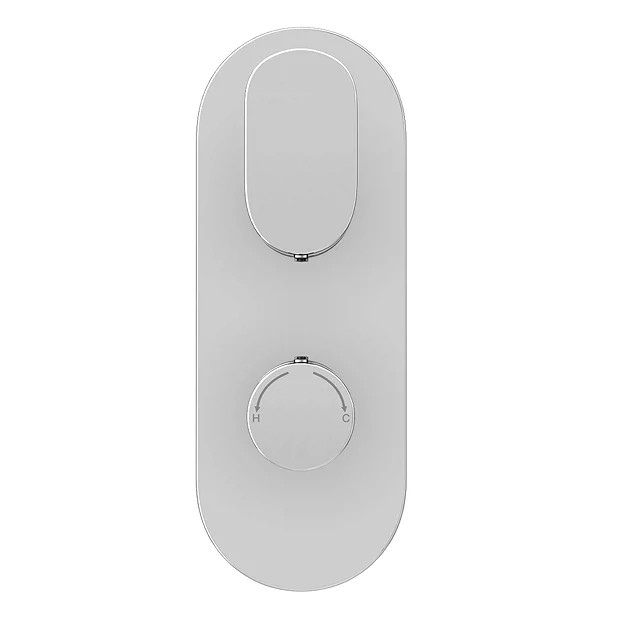

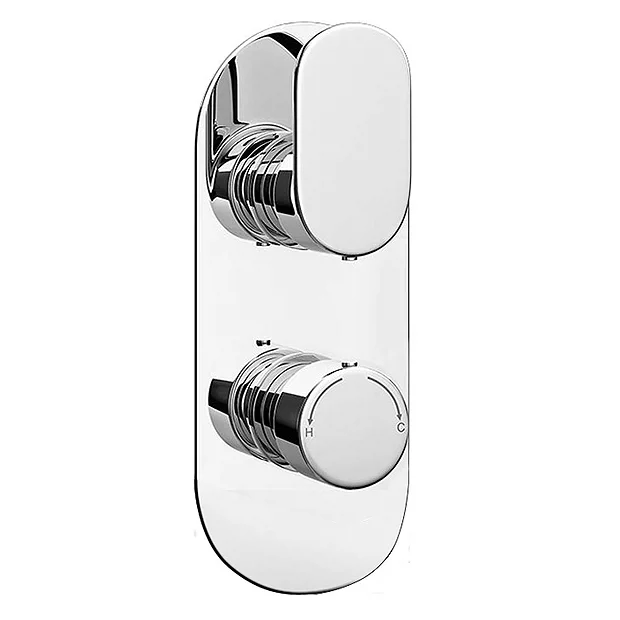

The wall mounted Bosa modern concealed one outlet shower package features minimalist round lever handles with a stylish matching curved back plate in chrome and a 200mm round rainfall type fixed shower head with arm.

This stylish concealed thermostatic shower valve offers thermostatic showering via two easy-to-operate controls. Separate controls for temperature and flow. Designed to work with a single shower accessory.

Shower Valve Details

• Height: 215mm
• Width: 80mm
• Type: Concealed Valve
• Colour/Finish: Chrome Polished

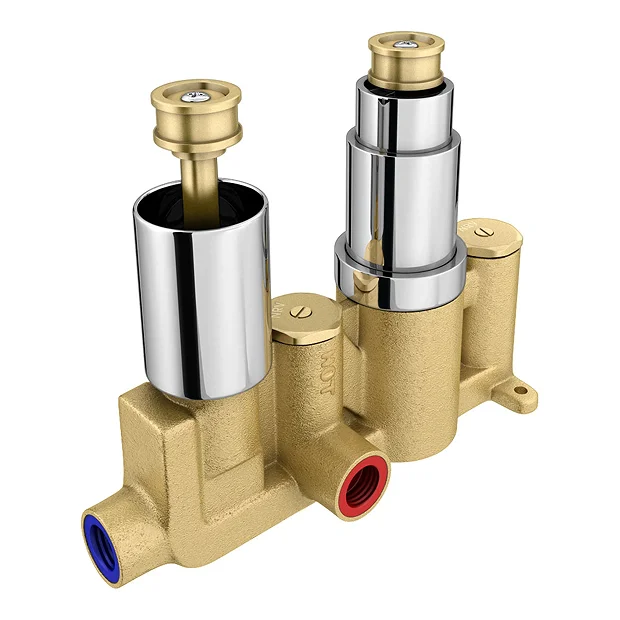

• Material: Solid brass
• Style: Modern
• Shape: Round
• Round Lever handles
• Wall mounted
• Thermostatically controlled
• Water Pressure: 0.5 bar to 3 bar

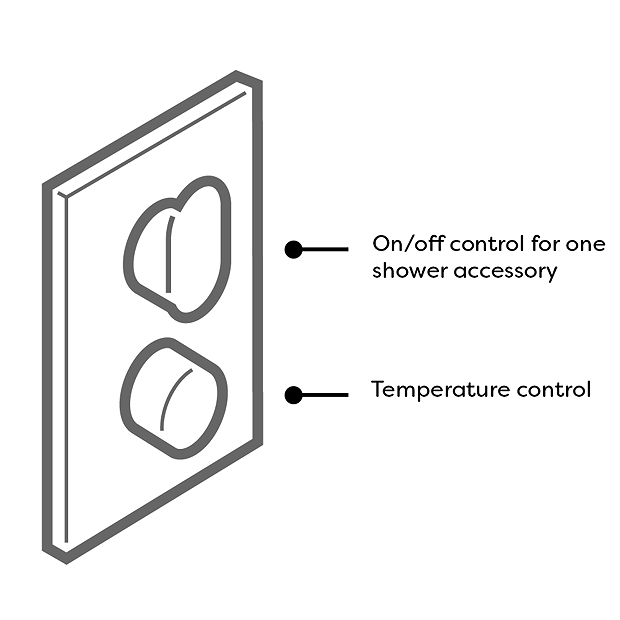

• Separate controls for temperature and flow.
• Operates a single shower accessory – 1 Outlet
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

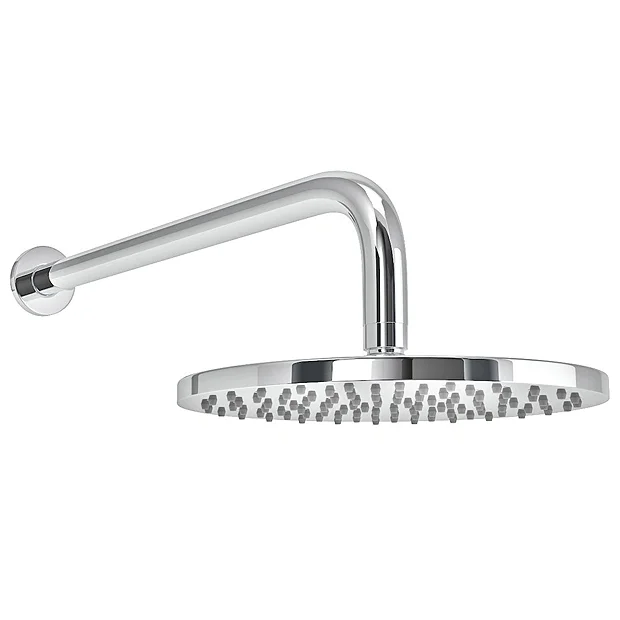

Shower Head + Arm Details

• Shower Head Dimensions: 200mm diameter
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Rainfall Shower
• Pressure requirement: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Shower head is chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Pictures for illustrative purposes only

All measurements are approximate

Comprises

(1) 200mm Round Head
(1) Round Shower Arm
(1) Bosa Modern Twin Concealed Thermostatic Shower Valve – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
