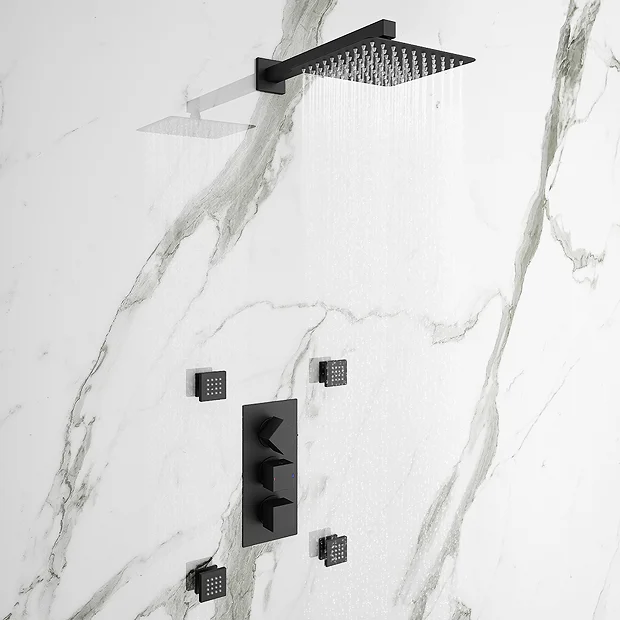

Arezzo Matt Black Square Concealed Triple Shower Valve With Fixed Head + 4 Body Jets

Arezzo Matt Black Square Concealed Triple Shower Valve with 200 x 200mm Fixed Head + 4 Body Jets

The on-trend Arezzo matt black square minimalist range brings substantial elegance to the modern bathroom. Package includes a concealed triple thermostatic shower valve, fixed shower head and 4 slim square body jets. The shower valve offers thermostatic showering via three easy to operate controls that give you power over temperature and flow. Triple shower valve operates two outlets separately or simultaneously (overhead shower head or body jets). The solid brass construction makes the valve durable and quick to clean thanks to the smooth finish. The ideal solution for multi-option showering.

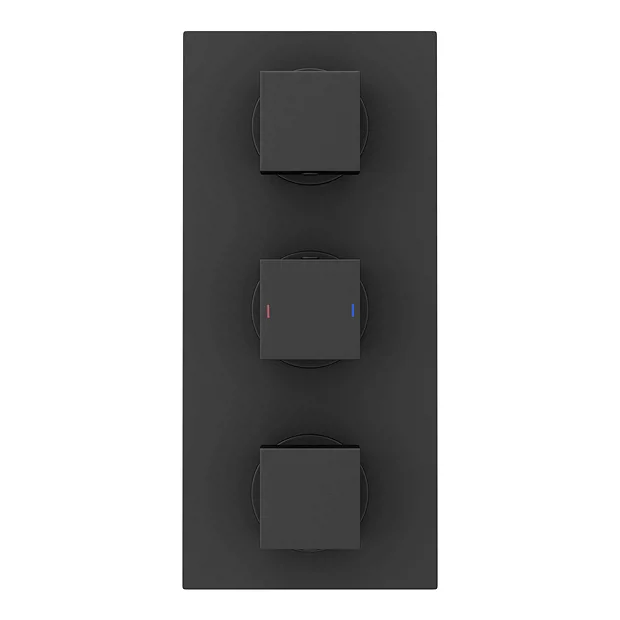

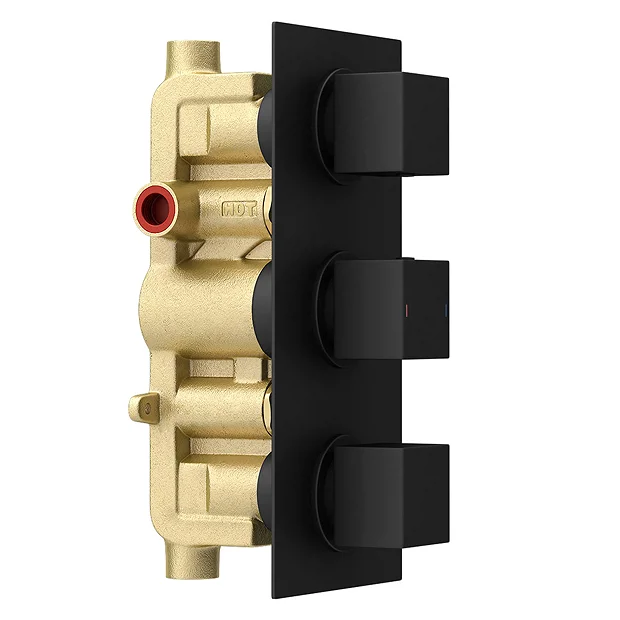

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Colour/Finish: Matt Black
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

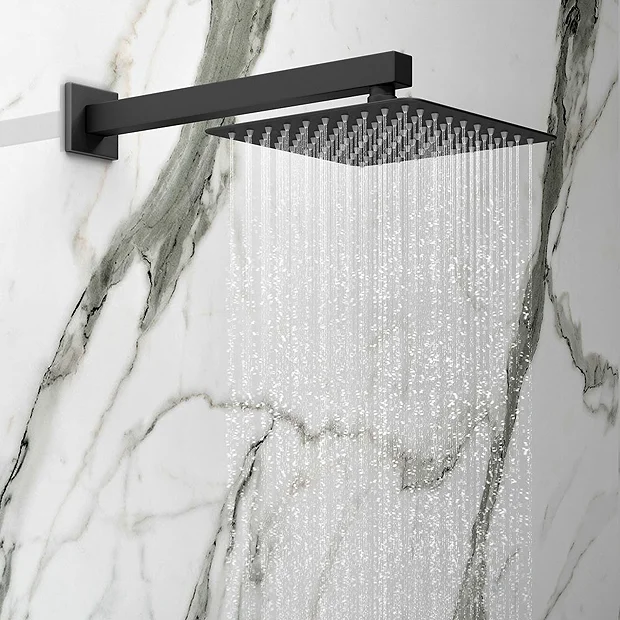

Shower Head + Wall Mounted Arm Details

• Shower Head Dimensions: 200 x 200mm
• Shower Arm Length: 335mm
• Style: Modern
• Shape: Square
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square shower arm.
• Rub clean nozzles makes this item easy to clean and maintain

Body Jet Details

• Overall Size: D88 x W50 x H50mm (Approx.)
• Product Type: Slim Body Jet
• Shape: Square
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Matt Black
• Material: Brass
• Supplied with swivel joint

*Installation requires rear access behind the wall.

All measurements are approximate

Product images are for illustration purposes only

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Arezzo Square Modern Triple Concealed Shower Valve – Matt Black (2 Outlet)
(1) 200 x 200mm Matt Black Ultra Thin Square Head
(1) Matt Black Square Shower Arm
(4) Arezzo Modern Slim Square Body Jet – Matt Black

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
