Arezzo Matt Black Round Concealed Triple Shower Valve With Fixed Head + 4 Body Jets

Arezzo Matt Black Round Concealed Triple Shower Valve with 200mm Fixed Head + 4 Body Jets

The on-trend Arezzo matt black round range brings substantial elegance to the modern bathroom. Package includes a concealed triple thermostatic shower valve, fixed shower head and 4 round body jets. The shower valve offers thermostatic showering via three easy to operate controls that give you power over temperature and flow. Triple shower valve operates two outlets separately or simultaneously (overhead shower head or body jets). The solid brass construction makes the valve durable and quick to clean thanks to the smooth finish. The ideal solution for multi-option showering.

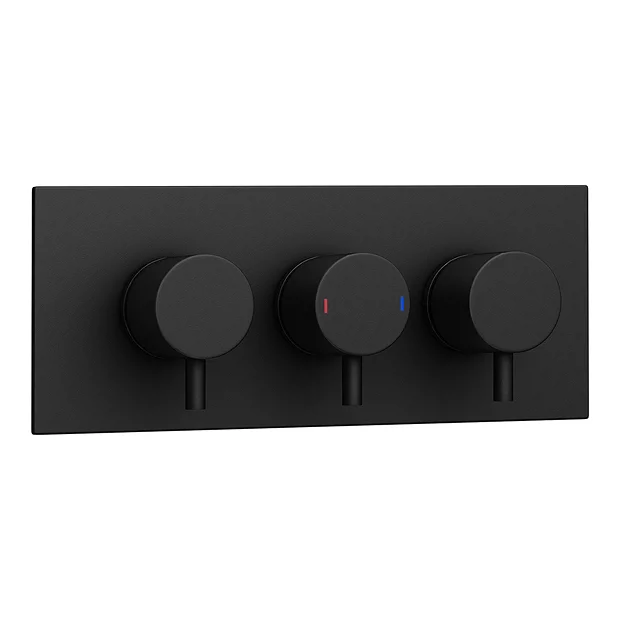

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Round
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold water supply failure.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

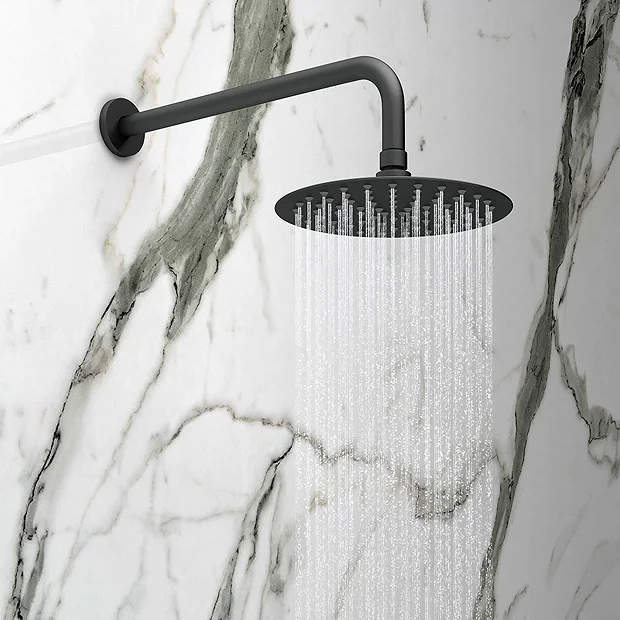

Shower Head + Wall Mounted Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included

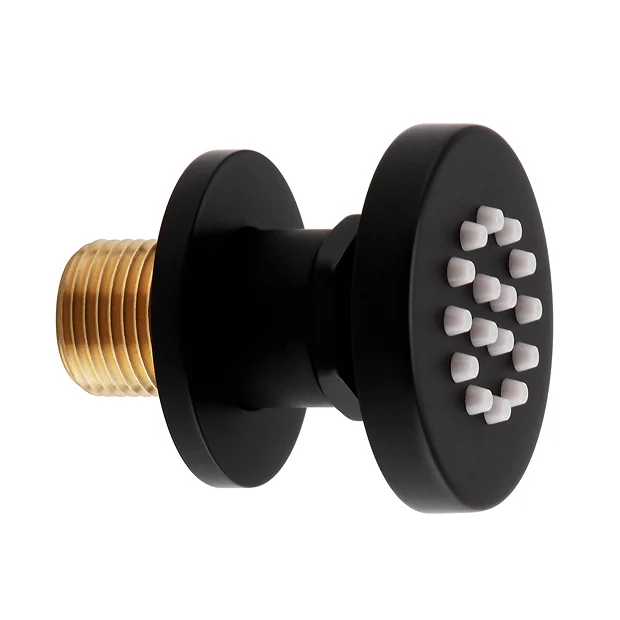

Body Jet Details

• Overall Size: D55 x W50 x H50mm (Approx.)
• Diameter: 50mm
• Product Type: Slim Body Jet
• Shape: Round
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Matt Black
• Material: Brass
• Supplied with swivel joint

*Installation requires rear access behind the wall.

All measurements are approximate

Product images are for illustration purposes only

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges,  2 year on coloured finish)

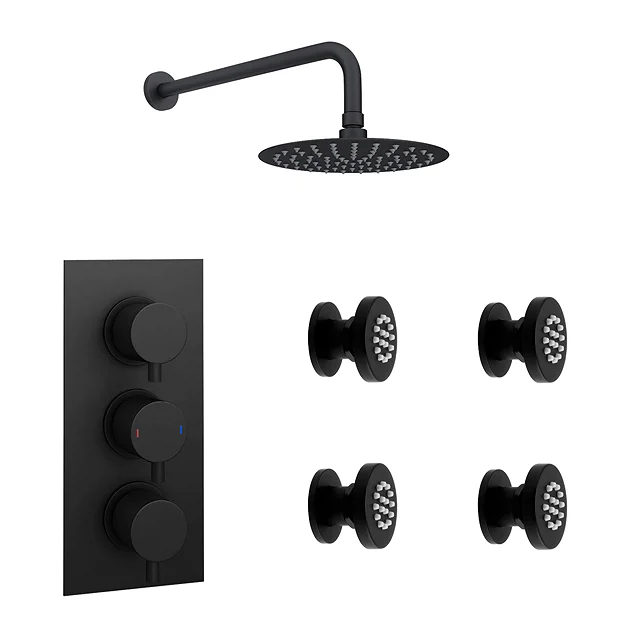

Comprises

(1) Arezzo Round Modern Triple Concealed Shower Valve – Matt Black (2 Outlet)
(1) 200mm Matt Black Ultra Thin Round Head
(1) Matt Black Round Shower Arm
(4) Arezzo Modern Slim Round Body Jet – Matt Black

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
